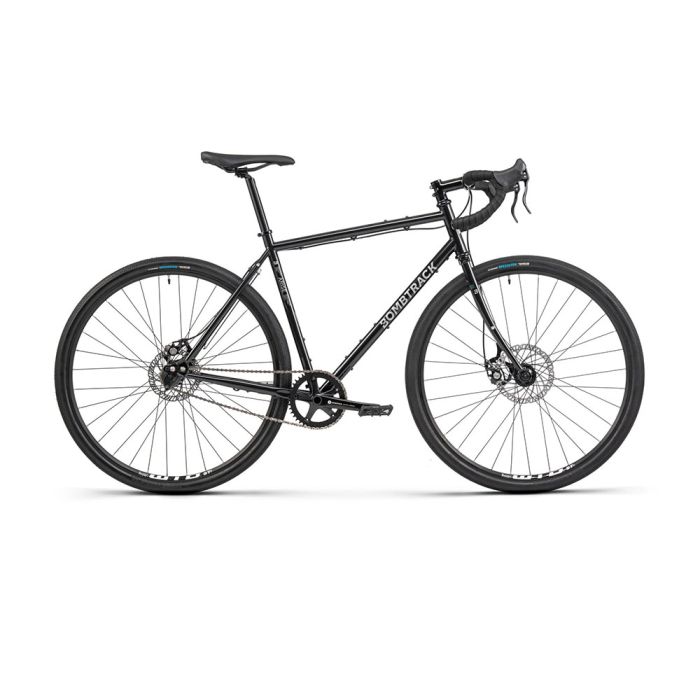

Bombtrack Arise Bike Metallic Black
Find your nearest Bombtrack dealer with our dealer locator!
It all starts here.
Arise marks the gateway into the Bombtrack lineup. Built from heat-treated, double-butted 4130 crmo steel, this model offers the simplest and most direct path into the world of drop bar off-road riding.
With a singlespeed setup, there’s no fuss over gearing — just hop on and pedal. Wide, fast, and comfortable tires make every ride smooth and effortless.
The frame’s modern design features 12 mm thru-axles, disc brakes, and both frame and fork have mounts for racks, fenders, and internal routing for dynamo lighting — making it just as functional as it is stylish.
Size XS
• Recommended rider height: 150–161 cm
• Standover height: 733 mm
• Seat tube length: 460 mm
Size S
• Recommended rider height: 160–171 cm
• Standover height: 762 mm
• Seat tube length: 490 mm
Size M
• Recommended rider height: 170–181 cm
• Standover height: 799 mm
• Seat tube length: 520 mm
Size L
• Recommended rider height: 179–190 cm
• Standover height: 828 mm
• Seat tube length: 550 mm
Size XL
• Recommended rider height: 188–199 cm
• Standover height: 857 mm
• Seat tube length: 580 mm
Specifications
| Color 1 | Metallic black |
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Handlebar | Seido CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Control bar tape |
| Stem | Bombtrack Roam forged aluminium stem, -7° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Tektro RL-340 brake levers |
| Brakes | Tektro Mira post mount mechanic disc brakes |
| Rotor | Tektro 180 mm front and 160 mm rear rotor |
| Crankset | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | Wellgo B109N flat pedal |
| Chain | KMC X8 chain, 1/2'' x 3/32'', 98L |
| Chainring | Bombtrack Ridge aluminium chainring, narrow-wide, 42 T |
| Cassette | 16 T heat treated crmo, 1/2'' x 3/32'' |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Weight | 11.4 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
