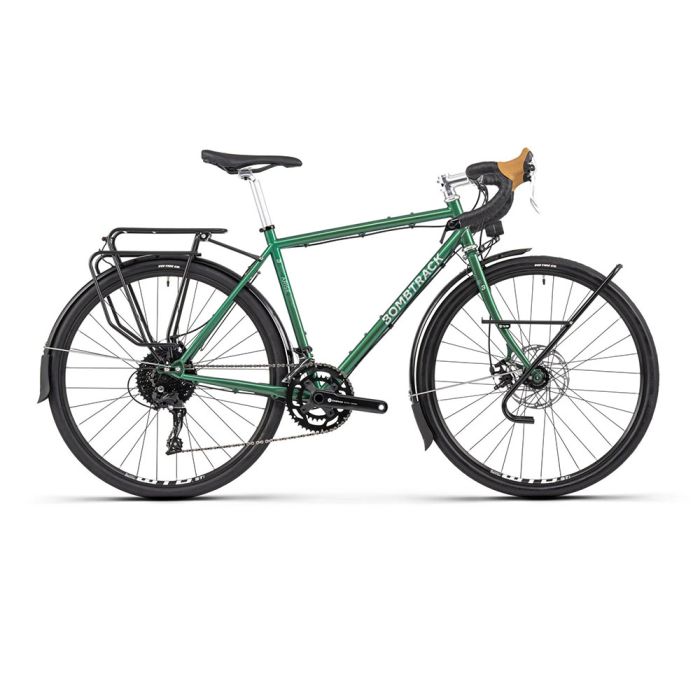

Bombtrack Arise Tour Bike Metallic Green
Find your nearest Bombtrack dealer with our dealer locator!
Dreaming of unplugging, handing your goldfish over to a trusted friend, and disappearing for a few weeks? The Arise Tour is built for that exact kind of escape. Rooted in Bombtrack’s highly versatile double-butted steel frameset, the bike comes equipped with Tubus touring racks, aluminium fenders, and a complete lighting system from KT and Supernova.
On extended tours, dependable shifting is everything. The setup features Microshift’s bar end shifters, a 10-speed clutch mech, and an 11–42T wide-ratio cassette, all paired with a subcompact 46/30 chainset — optimized for every kind of climb and stretch.
Braking is handled by TRP Spyre C mechanical calipers, with a 180 mm rotor at the front to provide consistent speed control, especially on long descents. Every component has been carefully selected for its reliability, so time on the road is spent riding — not troubleshooting.
Size XS
• Recommended rider height: 150–161 cm
• Standover height: 733 mm
• Seat tube length: 460 mm
Size S
• Recommended rider height: 160–171 cm
• Standover height: 762 mm
• Seat tube length: 490 mm
Size M
• Recommended rider height: 170–181 cm
• Standover height: 799 mm
• Seat tube length: 520 mm
Size L
• Recommended rider height: 179–190 cm
• Standover height: 828 mm
• Seat tube length: 550 mm
Size XL
• Recommended rider height: 188–199 cm
• Standover height: 857 mm
• Seat tube length: 580 mm
Specifications
| Color 1 | Metallic green |
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Escape bar tape |
| Stem | Seido Meander forged aluminium stem, -6° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Tektro RL-340 brake levers |
| Shifter | Microshift BS-M10 bar end shifter 2 x 10 |
| Brakes | TRP Spyre C post mount mechanic disc brakes |
| Rotor | TRP 180 mm front and 160 mm rear rotor |
| Crankset | Bombtrack Ames forged aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Chain | KMC X10 chain, 1/2'' x 11/128'', 116L |
| Chainring | Steel, subcompact, 46 / 30 T |
| Cassette | Microshift CS-H103 10-speed, 11 - 42 T |
| Front derailleur | Microshift FD-R552-B |
| Rear derailleur | Microshift RD-M62L, long cage |
| Front hub | KT dynamo hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Fender | Bombtrack Ward aluminium fenders, 50 mm |
| Rack | Tubus Tara front, Logo Evo rear |
| Light | Supernova E3 Pure 3 front, E3 Tail Light 2 rear |
| Weight | 14.7 kg (size M) |
| Weight frameset | 2480 g frame (size M, incl. TA, hanger) / 1370 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 130 kg incl. luggage |
| ASTM riding condition | 2 |
